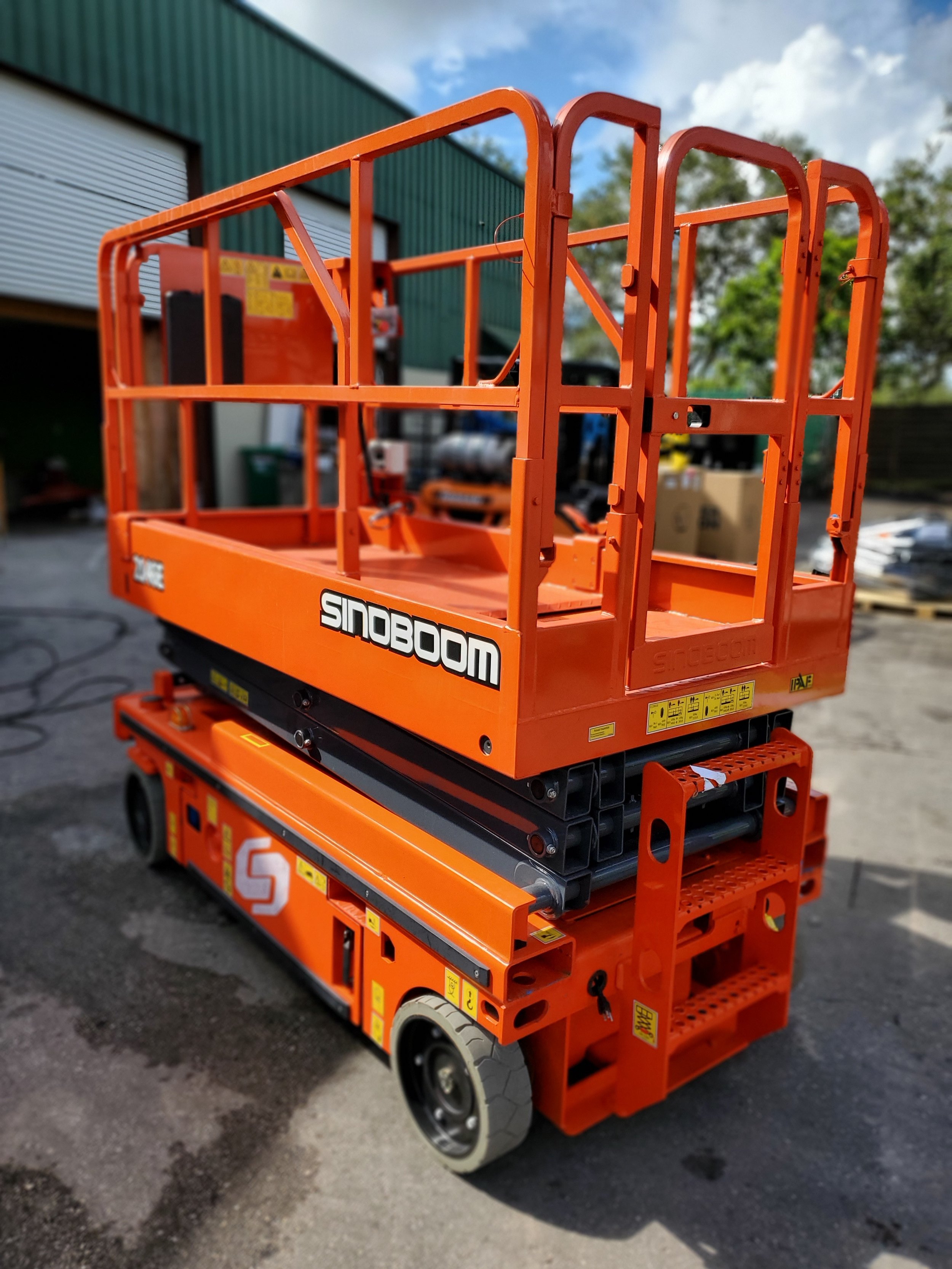

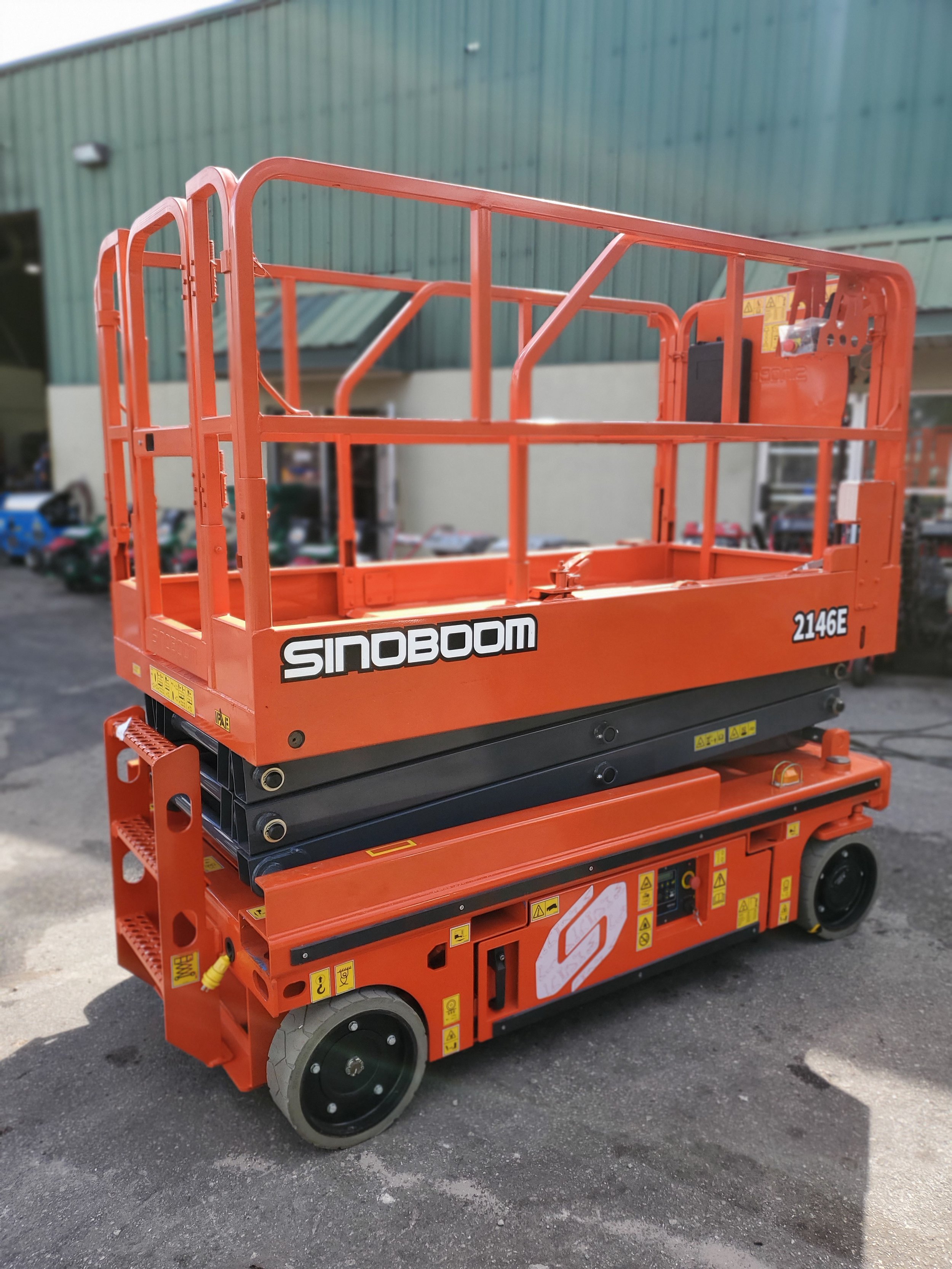

EFFICIENT AND ENVIRONMENTALLY FRIENDLY

• Powerful ramp climbing abilities

• Environmental protection, zero emissions

REDUCED MAINTENANCE COSTS

• Exclusive open chassis design for easy maintenance

• Rapid, convenient transportation with two-way forklift slot

• Highly versatile parts and components you know and trust

UNIQUE FEATURES

• Bumper rail and indented sliding groove designed to prevent scratches

DIMENSIONS

Max Working Height: 27’3″

Length-Stowed: 8′

Height-Stowed Rail Unfolded: 7’3″

Ground Clearance (Pothole Guard Stowed): 4″

Max Platform Height: 20’8″

Width-Stowed: 3’10”

Height-Stowed Fixed Rail: –

Ground Clearance (Pothole Guard Deployed): 0.98″

Max Horizontal Extension: 3′

Height-Stowed Rail Folded: 5’3″

Wheelbase: 6’2″

Platform Dimensions (LxWxH): 7’6.5″ x 3’9″ x 3’7″

PERFORMANCE

Platform Allowable Occupants (Indoor/Outdoor): 2 Persons

Drive Speed-Stowed: 2.5mph

Descent Time (Unloaded): 30s~35s

Tilt Rating (Front to Back/Side to Side): 3°/1.5°

Platform Capacity: 1,213lbs

Drive Speed-Raised: 0.5mph

Gradeability: 25%

Tires-solid: 15×5″

Lift Extension Capacity: –

Elevation Time (Unloaded): 33s~38s

Turning Radius (Inside/Outside): 0/7’8.5″

POWER

Batteries: 6V×4/225Ah

Charger Input: 100~240V AC

Power Source: 24V DC

Charger Output: 30A

Drive Mode: Motor, front-wheel

Hydraulic System Capacity: 4.2 gal

Weight (Indoor/Outdoors): 5,412lbs

Floor Loading (maximum ground pressure) : 182 psi/1255 Kpa)

Standards Compliance: ANSI/CSA
