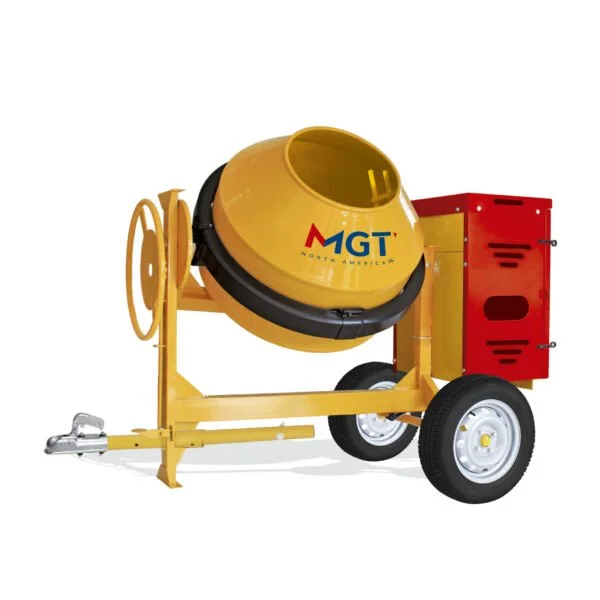

Designed for large-scale projects, this Concrete Mixer delivers excellent performance with low maintenance requirements. Its robust construction makes it an ideal choice for rental use, as its structure is built to withstand heavy-duty demands.

Key Features:

• 2 ½” tow bar with a 2” ball hitch or pintle hitch included.

• Reinforced structure built for heavy-duty operation.

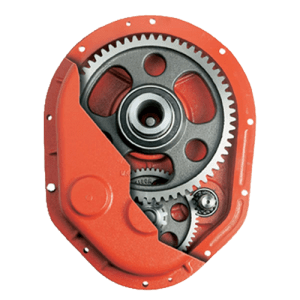

• Quick and easy maintenance with a segmented ring gear in six interchangeable pieces, allowing precise pinion adjustments and cost-effective gear replacements.

• Balanced center of gravity aligned with the chassis, ensuring greater efficiency and reduced engine strain.

• Reinforced chassis and yoke arm for increased impact resistance, enabling operation on uneven terrain.

• Drum base reinforced with a 1/4” thick steel plate.

• Enhanced drum design allowing higher production capacity (1½ bags of cement).

• Efficient paddle design for improved mix quality.

Specifications

• Model: 11 Cu/Ft

• Total Drum Volume: 14 Cu/Ft

• Output Capacity Mixed: 11 Cu/Ft

• Weight Without Engine: 485 lbs.

• Drum Thickness: 12g 5/64"

• Flywheel Protection: Steel Plate

• Dimensions L X W X H: 80 x 45 x 62 inches

• Towing: Tow bar for Transport and Towing, with 2” ball Tow Hitch

• Motor: Gasoline - 8.0 HP

• Wheels: Pneumatic Rim 13”
