The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum. Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport.

Max Lift Height - Forks Down: 97”

Max Lift Height - Forks Up: 117”

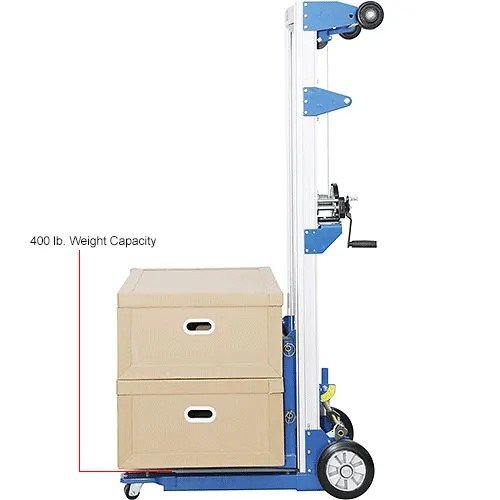

Max Capacity: 400 pounds

• Lightweight portable lifts are great for hundreds of applications

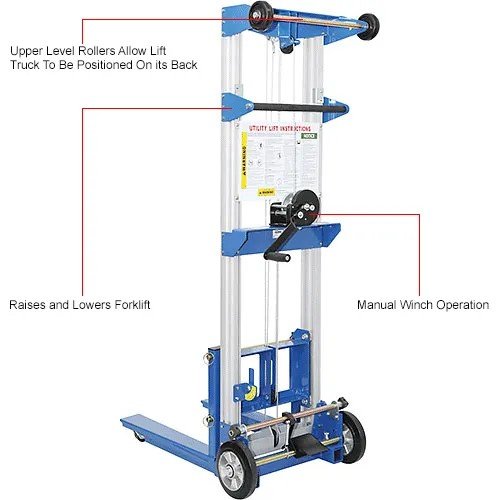

• Manual cable winch easily raises and lowers forks

• Invertible forks provide additional height capabilities

• Hold-down device secures carriage during transport

• Assembled Wt.(lbs.): 152

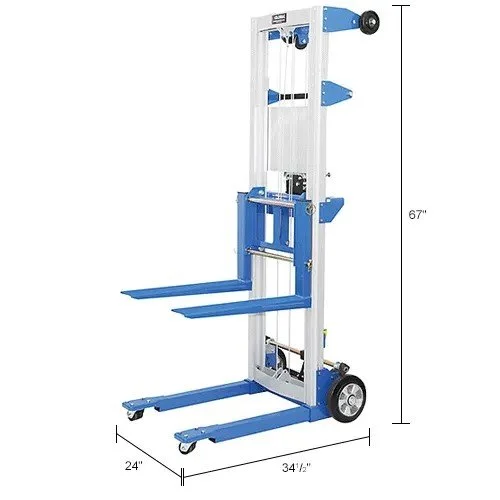

• Assembled Size: 24.8125"W x 35"L x 67.3125"H

• Uniform Capacity (lb.): 400

• Service Range w/ Forks Down (in.): 3-1/2 to 97

• Service Range w/ Forks Up (in.): 23-1/2 to 117

• Fork Width/Length (in.): 4 x 22-7/16

• Fork Spacing (in.): 20-7/8

• Fork Raise per Hand Crank Rotation (in.): 1

• Rear Non-Marking Wheel Diameter (in.): 8

• Front Swivel Wheel Diameter (in.): 2

Model A-Lift-R-HP

In Stock, Price Includes Freight
