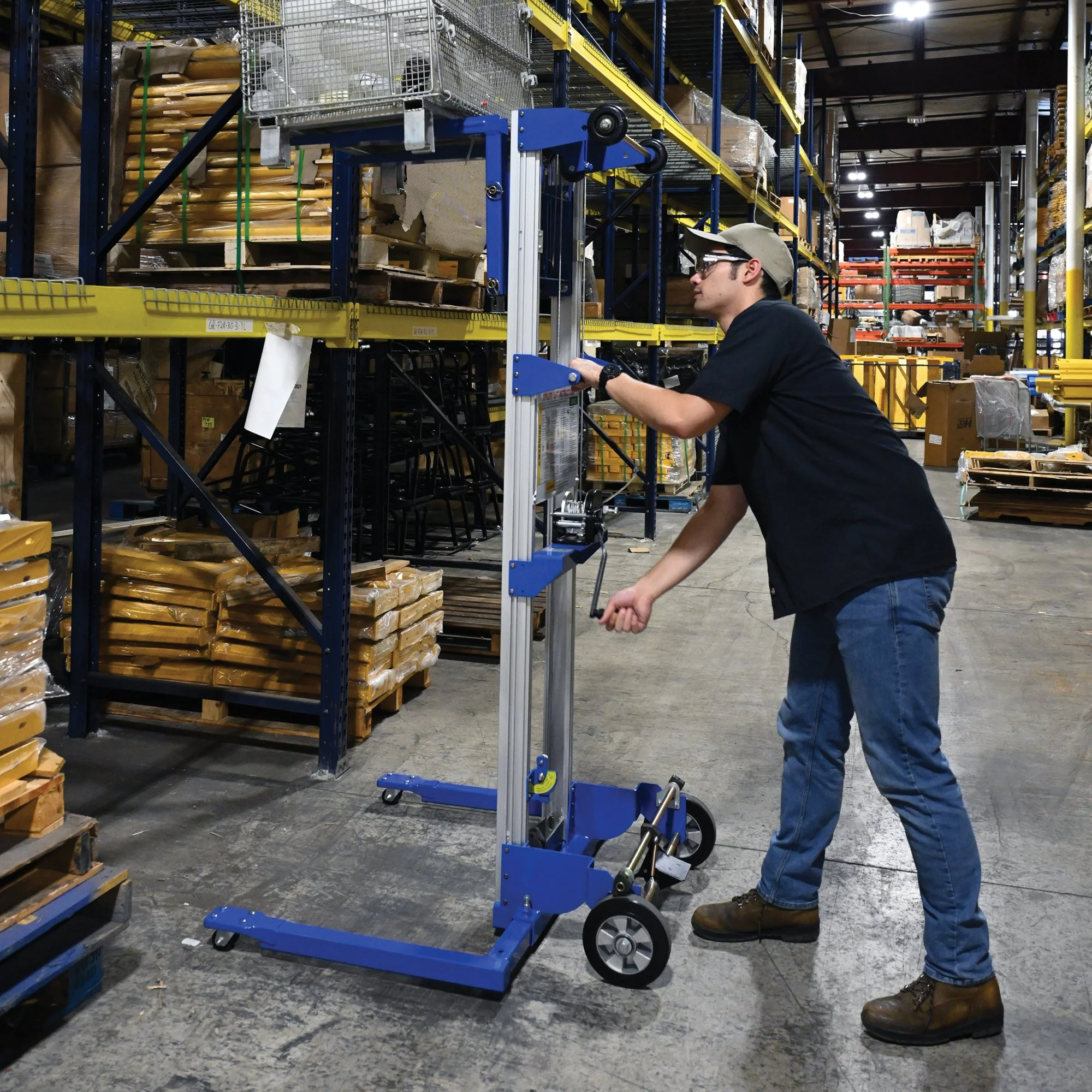

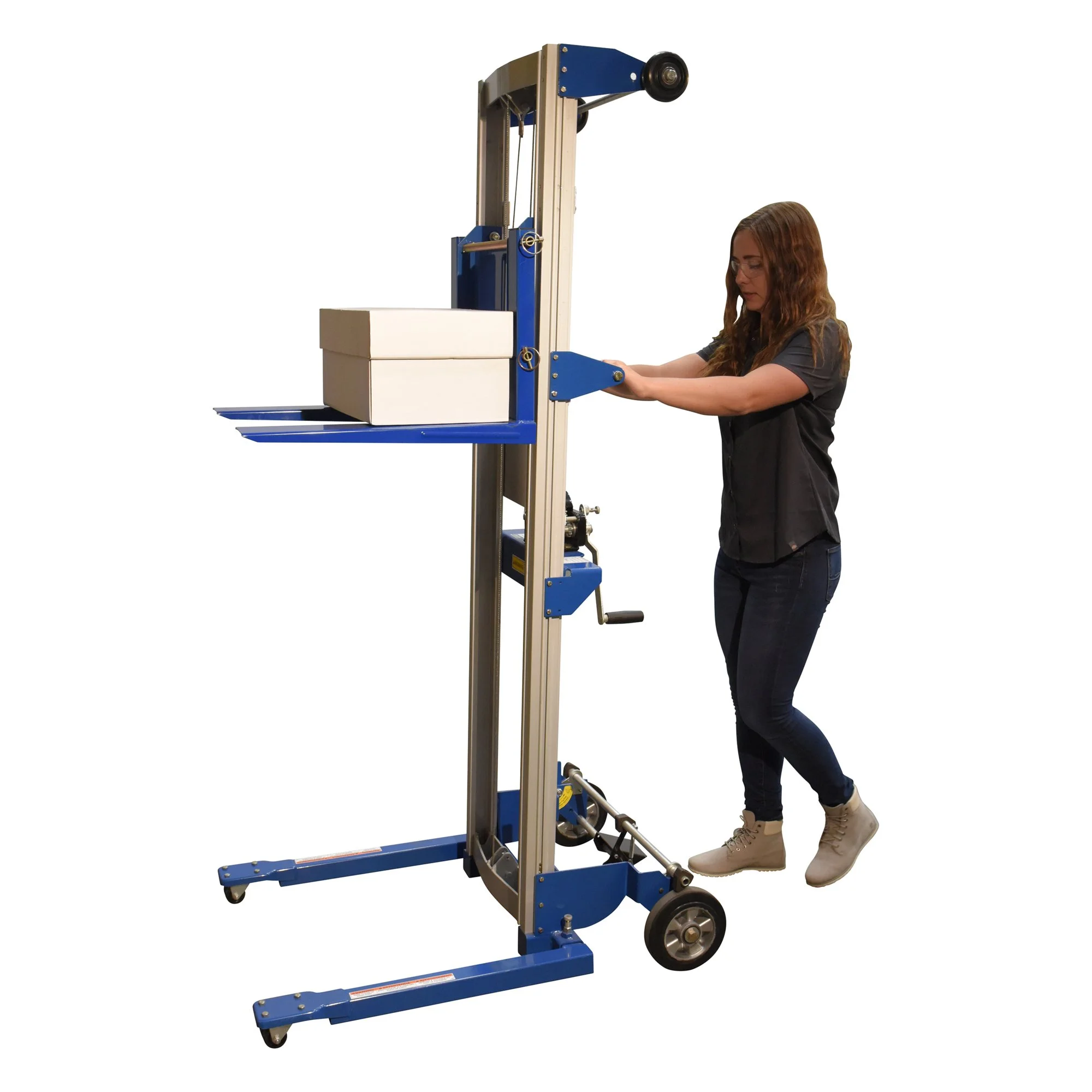

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum. Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport.

Straddle Base Adjusts From 29” to 43-7/8”

Max Lift Height - ForksDown: 122”

Max Lift Height - Forks Up: 143”

Max Capacity: 350 pounds

• Lightweight portable lifts are great for hundreds of applications

• Manual cable winch easily raises and lowers forks

• Adjustable straddle width for varying load sizes

• Hold-down device secures carriage during transport

• Assembled Wt.(lbs.): 154

• Assembled Size: 43.875"W x 42.5"L x 79.125"H

• Uniform Capacity (lb.): 350

• Service Range w/ Forks Down: 1-1/4 to 122

• Service Range w/ Forks Up: 21-1/4 to 143-11/16

• Fork Width/Length (in.): 4 x 22-7/16

• Fork Spacing (in.): 20-7/8

• Adjustable Leg Spacing (in.): 29 to 43-7/8

• Fork Raise per Hand Crank Rotation (in.): 1

• Rear Non-Marking Wheel Diameter (in.): 8

• Front Swivel Wheel Diameter (in.): 2

In Stock, Price Includes Freight

Model - A-Lift-S-EHP
