ASV RT-30 COMPACT MINI TRACKED SKID STEER
ASV RT-30 COMPACT MINI TRACKED SKID STEER
$0.00

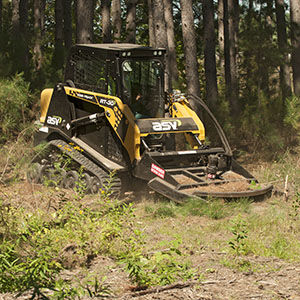

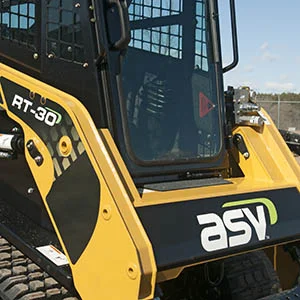

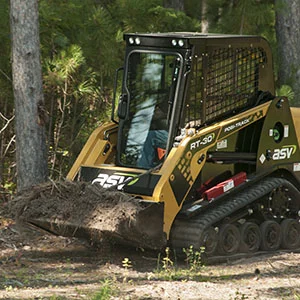

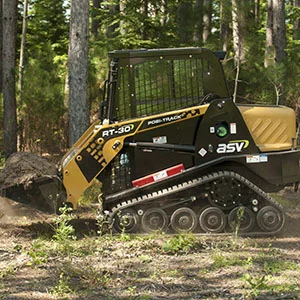

World’s Most Compact. The Posi-Track RT-30 is ASV’s smallest compact track loader, ideal for landscaping, working in confined areas and anywhere you need versatility and power in a smaller package. It has a safe and comfortable operator station that helps make your jobs easier so you finish sooner and with better results. A wide range of performance-matched work tools helps you complete most jobs quicker and with more precision than ever before.
OPERATING SPECS
- Operating weight: 3,600 lb / 1633 kg
- Ground pressure @ operating weight: 3.0 psi / 20.7 kPa
- Rated operating capacity (35% tipping load): 665 lbs / 302 kg
- Tipping load: 1,900 lb / 862 kg
- Travel speed, max.: 5.3 mph / 8.5 kph
ENGINE
- Type: Diesel, 3-cylinder, naturally-aspirated
- Model: Perkins 403D-15
- Displacement: 92 cu. in. / 1.5 L
- Gross power rating @ 2800 rpm: 32.7 hp / 25.1 kW
- Emission controls: Meets all US EPA Tier 4 final standards
UNDERCARRIAGE
- Track type: General purpose track costructed of rubber compound with embedded co-polymer cords and all-purpose treads. A smooth-tread "Turf Track" is optionally available. A single row of rubber track lugs is molded into the track.
- Track width: 11 in. / 279 mm
- Length of track on ground: 55 in. / 1397 mm
- Ground contact area: 1183 sq. in. / .79 sq. m.
- Drive system: Two hydrostatic direct-drive sprockets conrolled by a single joystick.
- Track drive sprockets: Elevated, with low-friction, replaceable sprocket rollers.
- Undercarriage suspension: Two independent torsion axles per undercarriage (side).
- Roller wheels: 12 high-density polyurethane and rubber wheels per track. Wheels have sealed roller bearings.
- Roller wheel diameter: 10 in. / 254 mm
AUX. HYDRAULICS
- Pump capacity: 10 gpm / 37.9 lpm
- System pressure, max.: 3,000 psi / 20684 kPa
- Controls: Intermittent via button on loader control joystick or continuous via dash-mounted switch.
- Couplers: Push-to-connect quick couplers mounted on loader arms. Pressure relief valve mounted to coupler block.
- Cooling system: High-efficiency hydraulic oil cooler beside (not stacked) engine radiator.
ATTACHMENTS AVAILABLE
- Auger drive and bits
- Backhoe
- Broom, rotary
- Bucket, GP
- Bucket, light-material
- Bucket, multi-purpose
- Brush cutter, rotary
- Dozer blade
- Eliminator rake
- Grapple bucket
- Pallet forks
- Power box rake
- Snow blade
- Snow blower
- Stump grinder
- Trencher
- Vibratory roller
add an equipment trailer (restrictions apply)

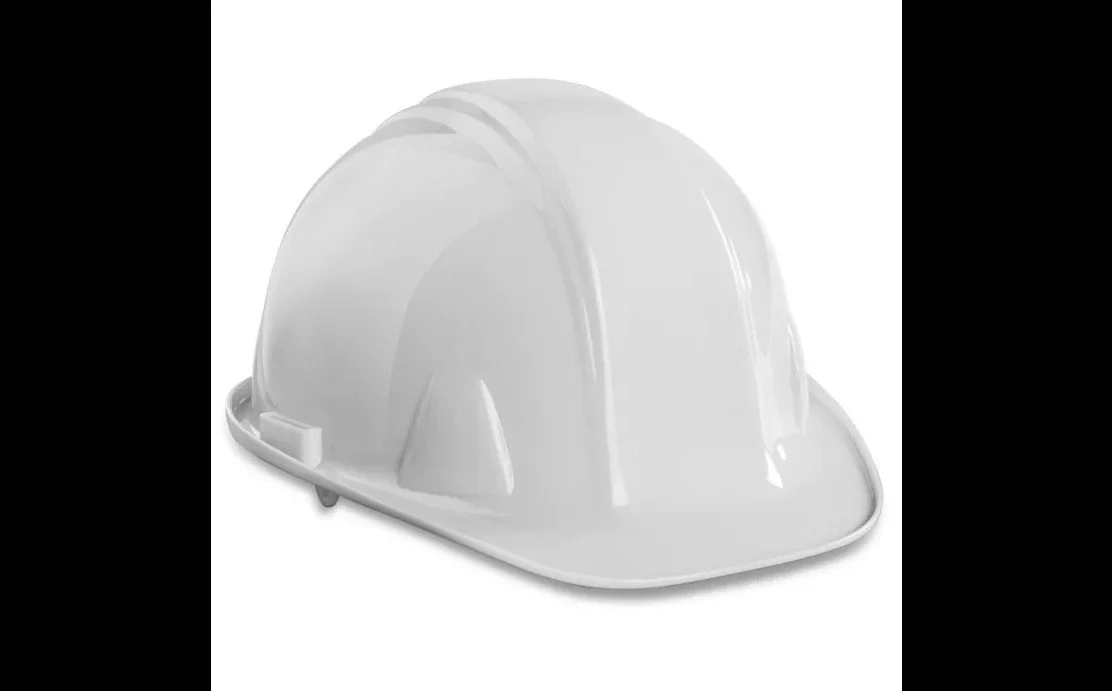

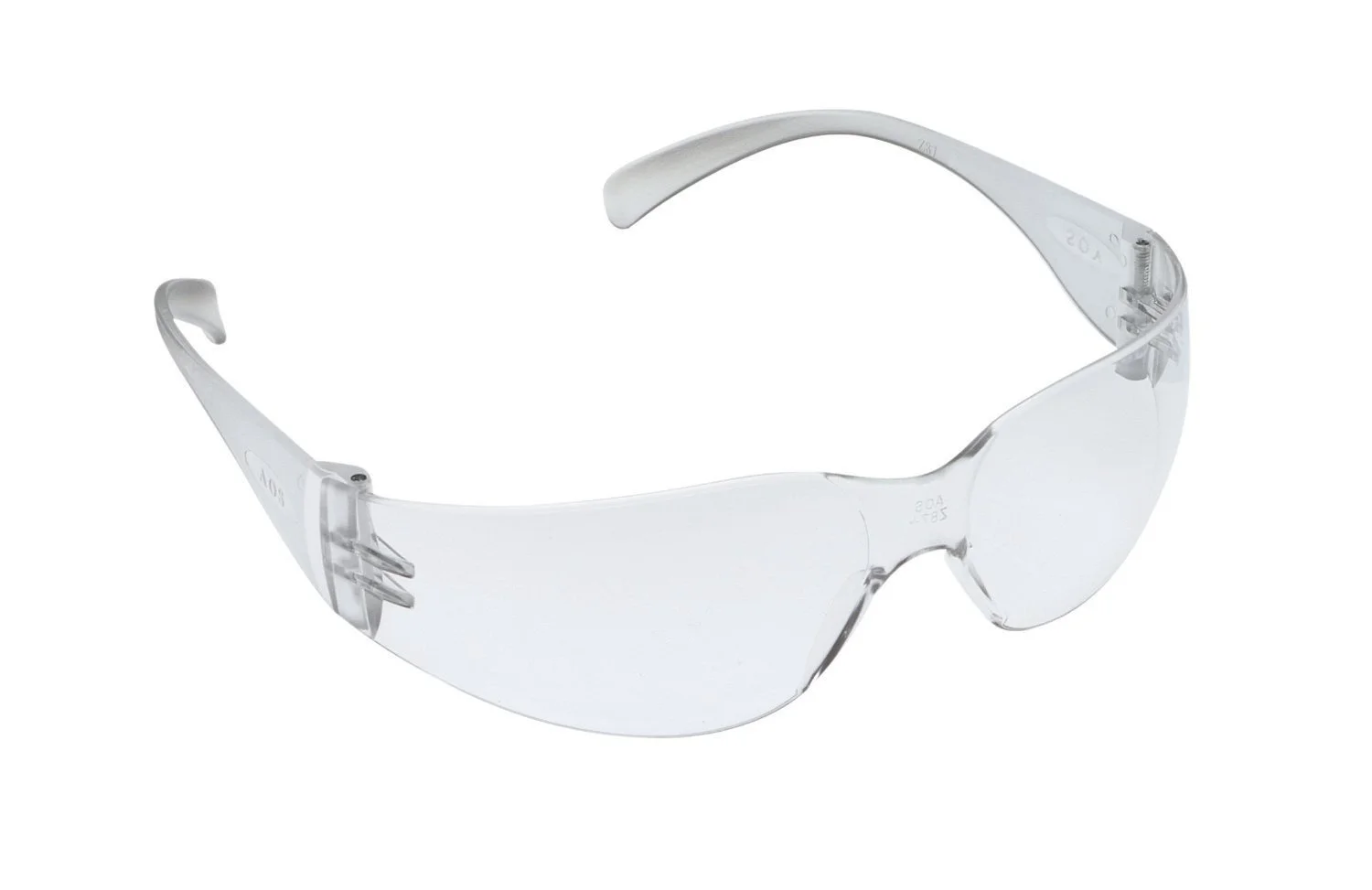

we sell personal protective equipment
ARE YOU LOOKING TO RENT, PURCHASE NEW OR PURCHASE FROM OUR RENTAL FLEET AND HAVE A QUESTION?
RELATED VIDEOS
ASV LLC is a designer and manufacturer of compact construction equipment with emphasis on compact track loaders & Skid Steer Loaders. Equipment designed and built by ASV uses unique and patented rubber track undercarriage technology that provides exceptional traction on soft, wet, slippery, rough or hilly terrain.
Rented this ctl to remove 3 uprooted stumps left from hurricane Irma. Very impressed with the lifting capability, traction and minimal ground disturbance. Just wish the company it was rented from offered a grapple!
