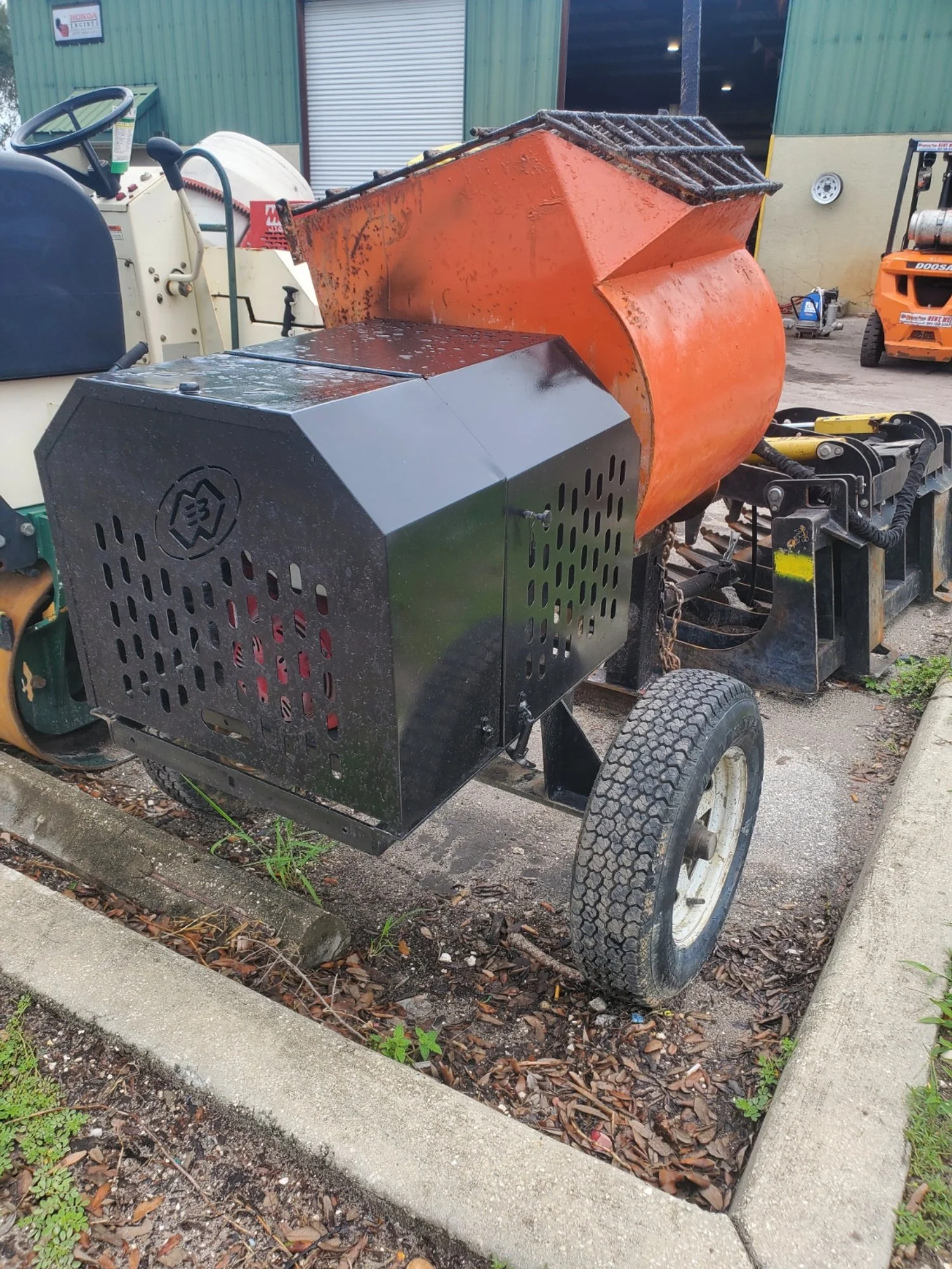

The MBW MM80 is an 8 cubic foot capacity mortar mixer powered by a Honda GX240 gas engine, with a batch size of 2.5-3 bags of material. Key features include a heavy-duty steel paddle shaft with clamps for strong drive power, a high-capacity cast iron trunion and pillow block, and a single-piece, self-opening/closing grate cover for added safety and strength.


General Specifications

• Model: MM80

• Capacity: 8 cu. ft. (0.23 cu. m)

• Batch Size: 2.5 - 3 bags

• Weight: 715 lbs (324 kg)

• Dimensions: 46" W x 67" L x 57" H

Engine & Drivetrain

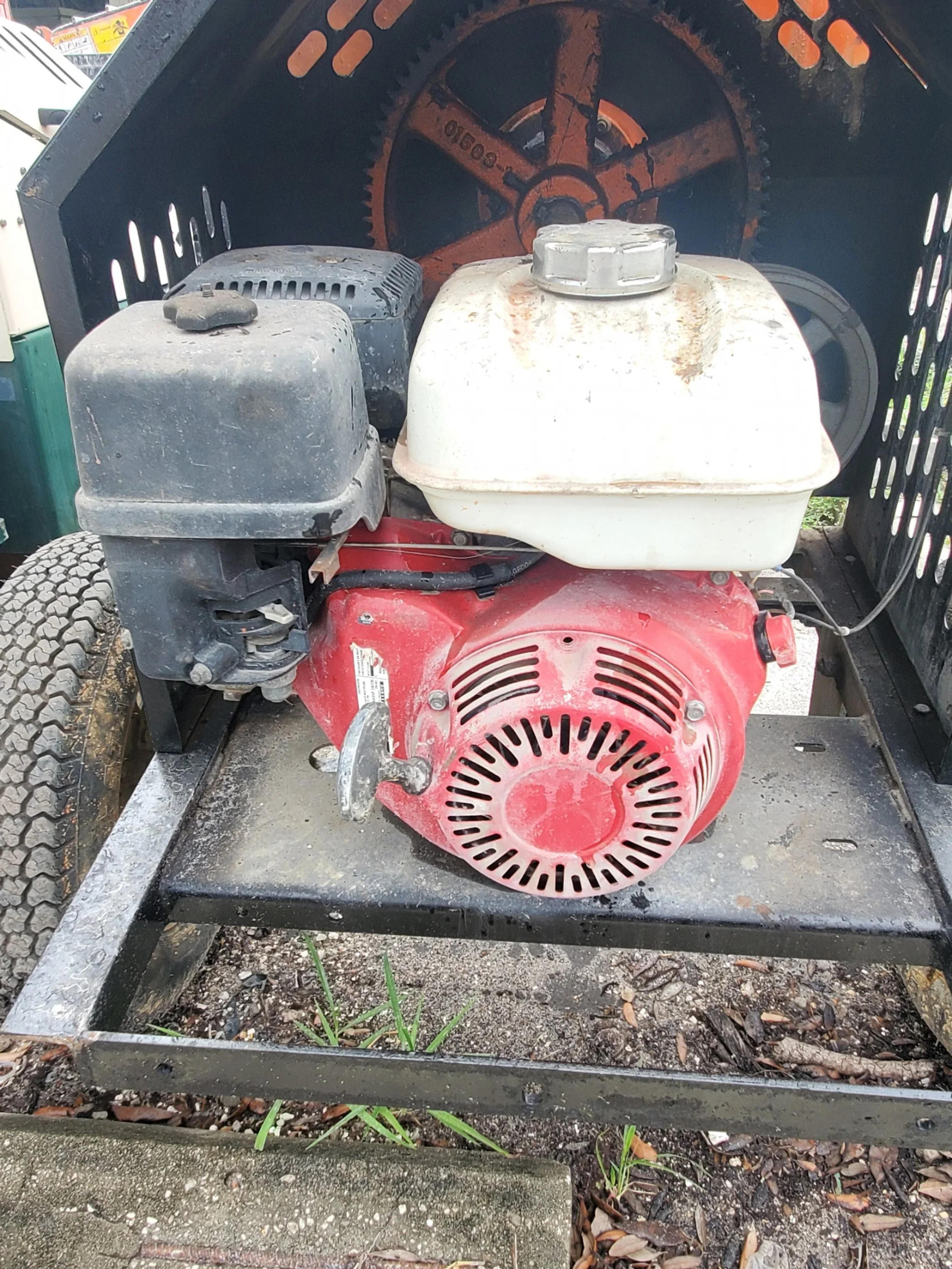

• Gas Engine: Honda GX240 commercial-grade engine

• Electric Motor: Baldor 2 HP (1-phase) at 1725 RPM, requiring 230V

• Drive: Heavy-duty V-belts to a gear drive with a heavy-duty enclosed gearbox

Key Features

• Paddle Shaft: Heavy-duty design with steel paddle shaft clamps that prevent slippage and ensure maximum drive power.

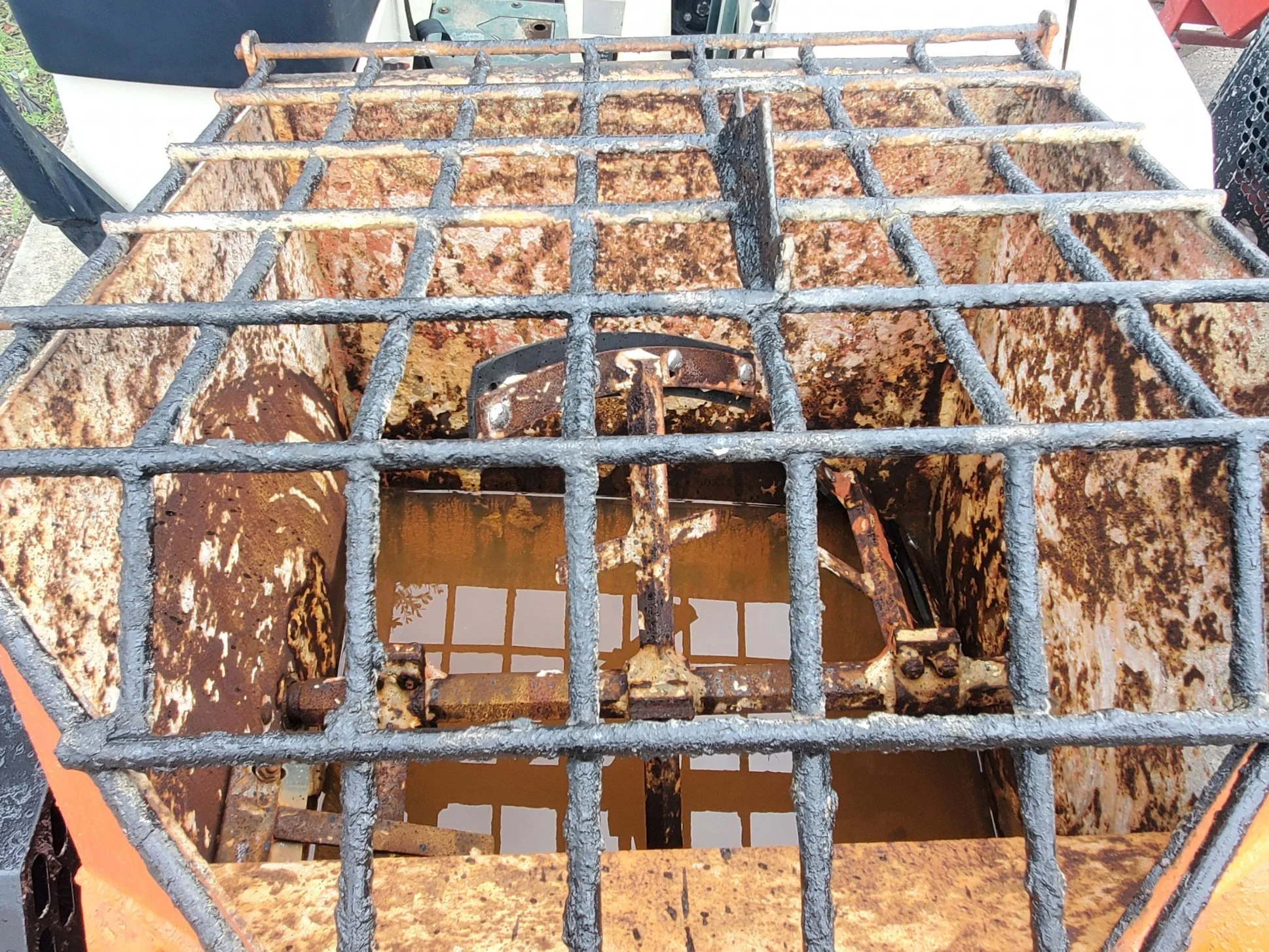

• Grates: Single-piece, self-opening/closing grate cover for increased strength and safety.

• Bearings: High-capacity cast iron trunion and pillow block construction for durability.

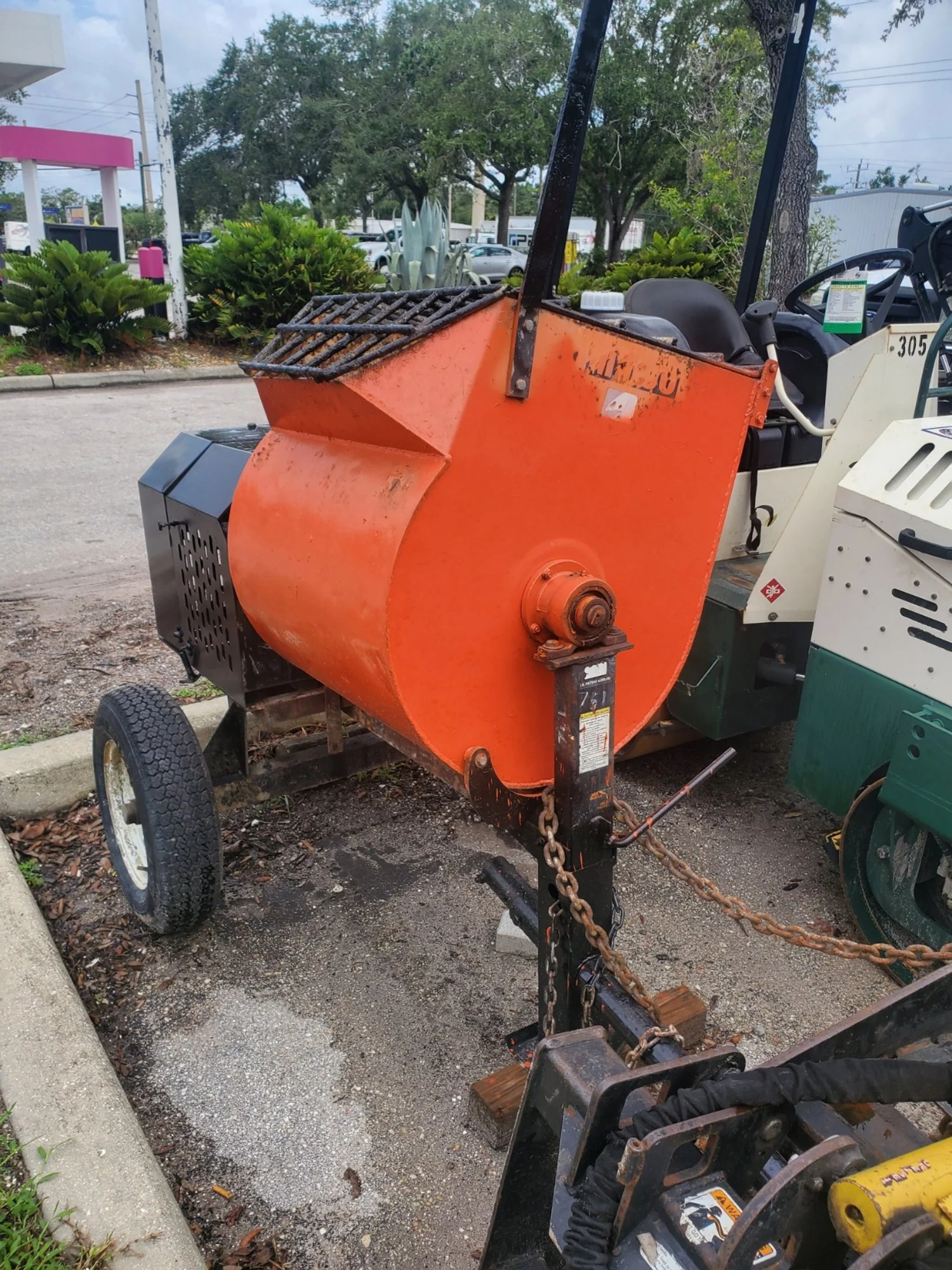

• Drum: Steel drum for mixing mortar, grout, and light concrete.

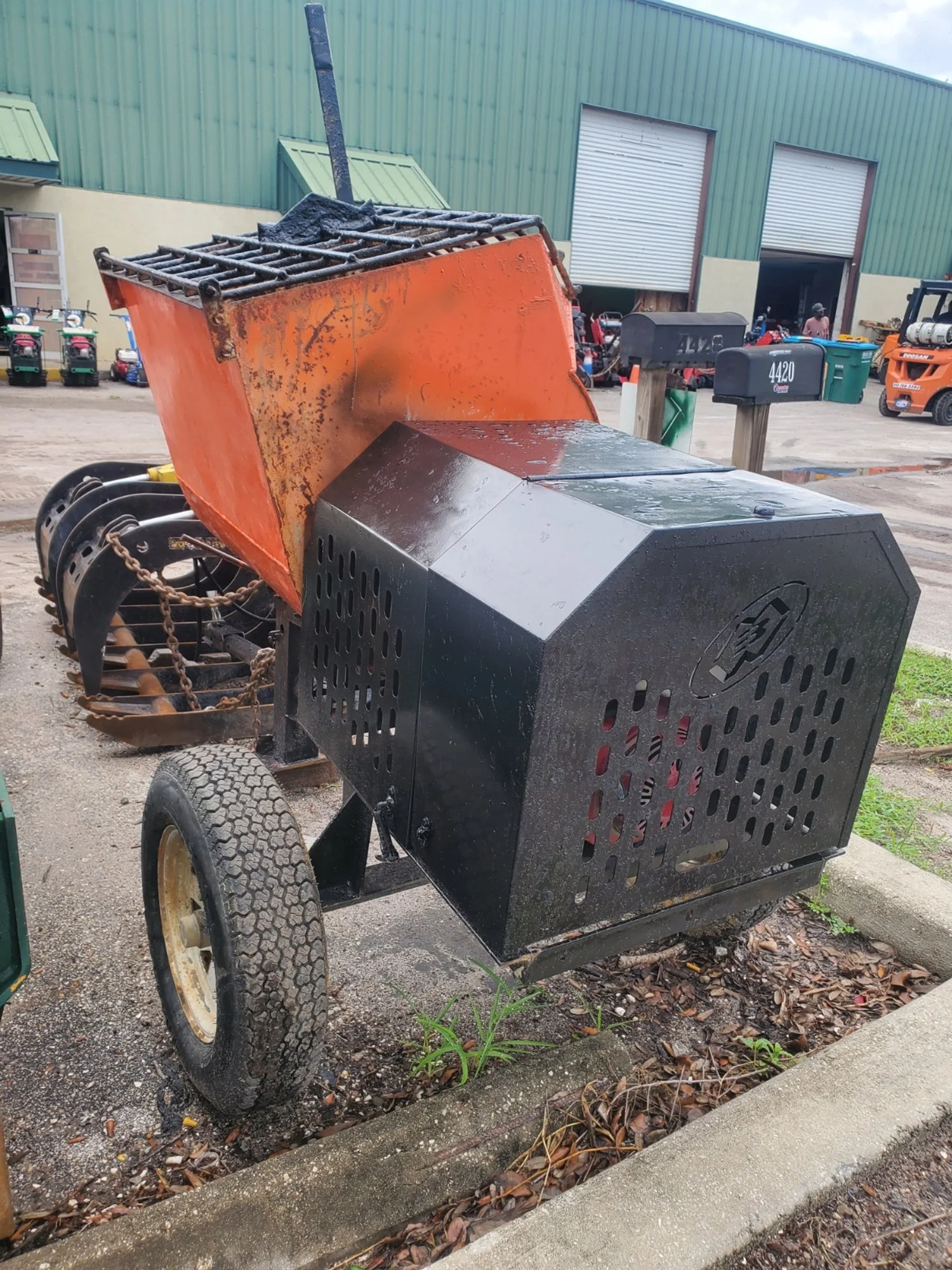

• Portability: Mounted on a towable frame and includes a highway tow kit.

New Blade Rubbers

Stock # 751

Located in Sarasota FL
