KEY FEATURES

• Optimum compactness

• Width of 2 ft 7 in to operate in the most congested areas

• Compact stowed height for easy access through standard doorways

• Exceptional productivity

• Load capacity up to 770 lbs (Compact 2032 E)

• Driveable at full height

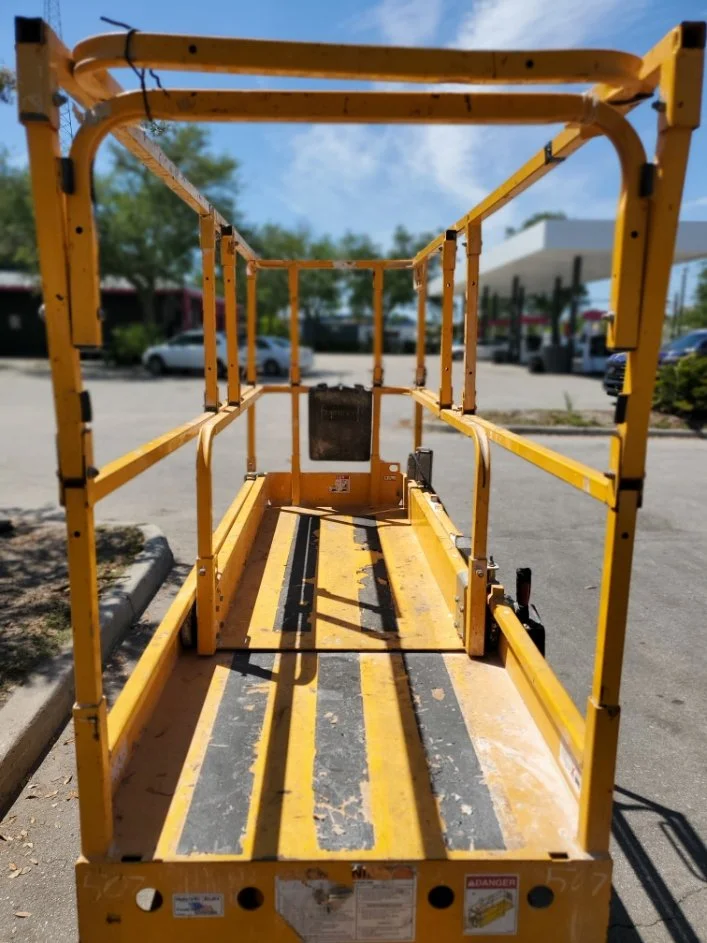

• Extended platform

• Long working cycles

• Reliable, easy to maintain.

Key Specifications

• Working Height: 31 ft 7 in - 32 ft 7 in (9.6 - 9.9 m)

• Platform Height: 25 ft 7 in - 26 ft 7 in (7.8 - 8.1 m)

• Lift Capacity: 550 lbs (250 kg)

• Platform Dimensions: 7 ft 10 in L x 32 in W (with 37 in extension)

• Stowed Height (Rails Up): 7 ft 9 in (2.36 m)

• Machine Width: 2 ft 8 in (0.81 m)

• Machine Weight: ~3,649 - 4,763 lbs (1,655 - 2,160 kg)

• Power Source: 24V DC electric (with 225 Ah batteries)

Performance & Features

• Drivable at full height (up to 25 ft 7 in).

• Turning Radius: 6 ft 9 in - 7 ft 1 in.

• Gradeability: 25%.

Features:

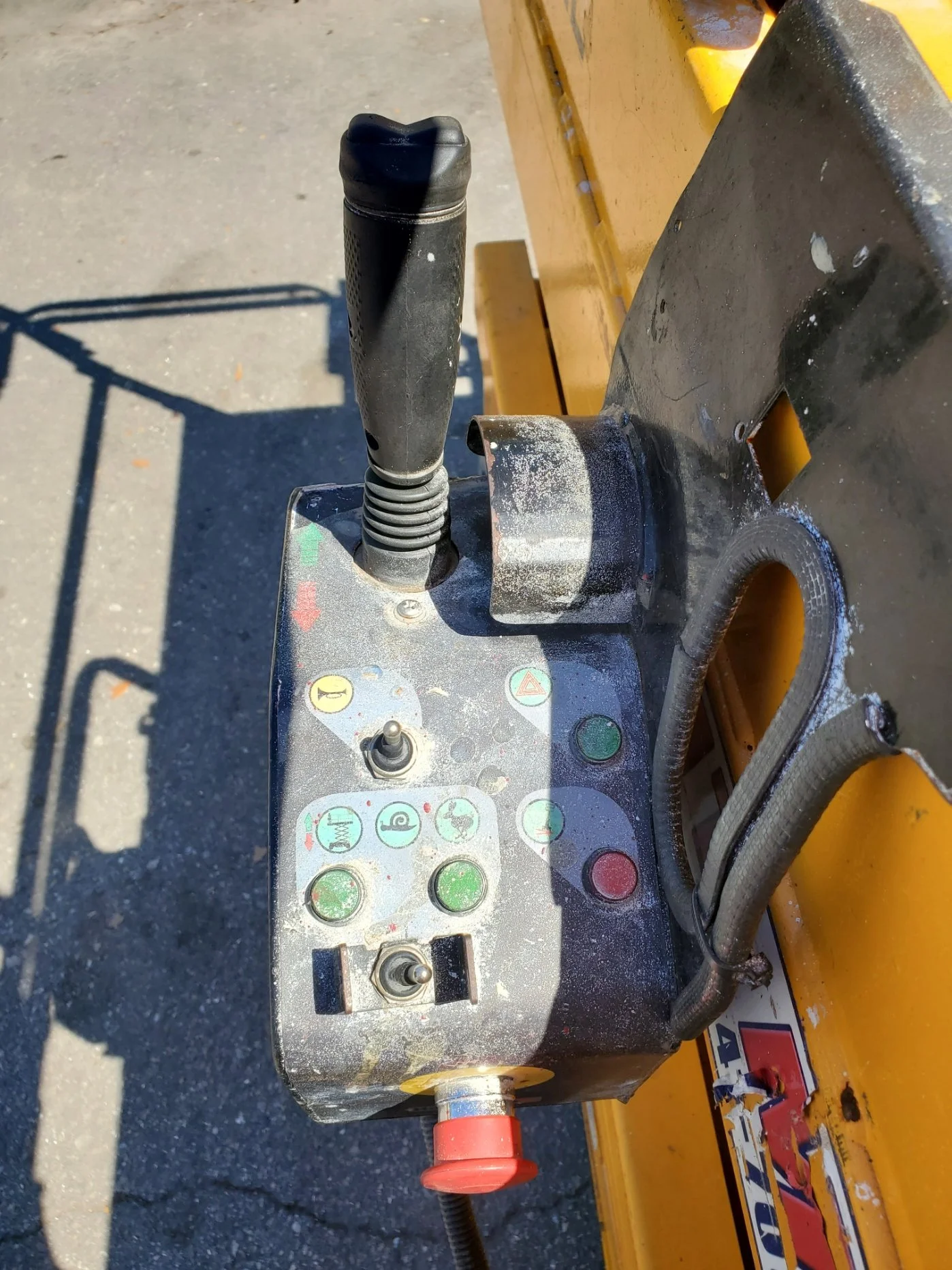

• Proportional controls

• Pothole protection

• Non-marking tires

• Foldable guardrails

Stock #507

*Based on 60 months at 7.5% APR, With Approved Credit
