Includes 50’ Discharge Hose with Camlock Fitting

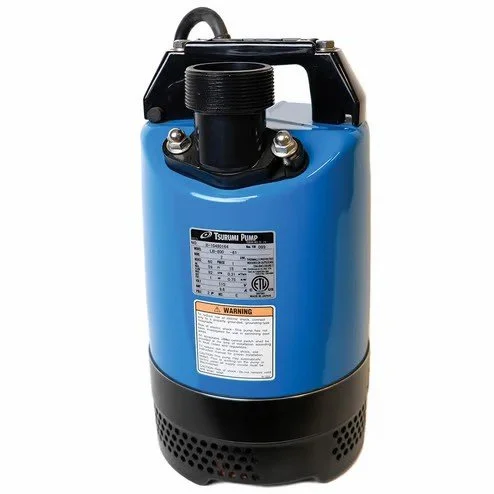

The Tsurumi LB-800-62 is a 1 HP, 115V manual submersible dewatering pump designed for high-volume, high-head applications in construction or industrial settings. It features a top-discharge slimline design (fits in 8-inch pipes) and delivers up to 73-80 GPM with a 60-69 ft. maximum head.

Key Specifications & Features:

• Motor: 1 HP, 115V single-phase (also available in 230V), 10.1A - 10.8A.

• Performance: Max flow 73–80 GPM (276–303 LPM), Max Head 60–69 ft. (18.3–21 m).

• Discharge: 2-inch NPT.

• Dimensions: Approximately 7.56 in. diameter x 13.5 in. height, fits in 8" pipe.

• Weight: ~29-43 lbs.

• Solids Handling: Up to 1/4 inch.

• Cable Length: 50 feet (14/3 cord).

• Construction: Urethane impeller and wear plates, Silicon Carbide mechanical seals, stainless steel casing.

• Operation: Manual (no switch), top discharge for maximum motor cooling.

Key Advantages:

• Durability: Built-in thermal protection, double-shielded bearings, and oil lifter for seal lubrication.

• Continuous Duty: Engineered for, and designed for dry-run capability.

The LB-800 is suitable for site drainage, manholes, and sump pits, particularly when space is restricted.
