• Drilling Diameter: Up to 8″

• Load Speeds: 450 RPM

• Power: 18 Amp

• Wet Drilling

Benefits

• Industry's most powerful, compact, and lightweight core drill rig, the drill motor, integrated water supply, and rig weight only 34 lbs., making the DBE 201 a portable and easy to maneuver machine.

• Built from corrosion resistant, high strength materials to withstand daily use in tough environments.

• High durability engineering includes features such as an oil bath gearbox for optimal lubrication and longer tool life, a stainless steel spindle, motor overload protection, and spring loaded carbon brushes, also for motor protection.

• Heavy duty column and base provide exceptional rigidity for straight, accurate coring. Anchor mounted stand for easy drilling, reducing operator fatigue.

• Supports demanding structural concrete drilling applications, designed for large 8" dia. concrete drilling capacity, with the best power to weight ratio in the industry.

• Ergonomic design with increased safety for operator including mechanical safety slip clutch and GFCI overcurrent protection.

• This core drill rig delivers increased safety, productivity, and user comfort.

Applications & Usage

• Diamond Core Drill Rig for wet drilling up to 8″ dia. in reinforced concrete, concrete, natural stone, and asphalt.

• Ideal for plumbing, mechanical and electrical construction, as well as civil engineering and landscape construction.

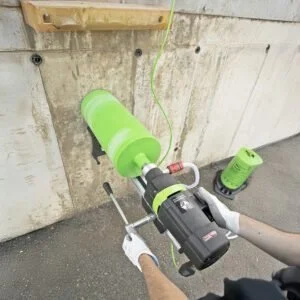

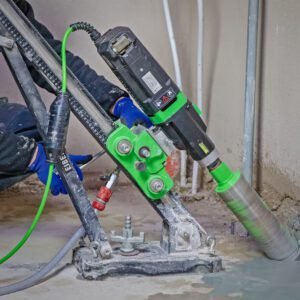

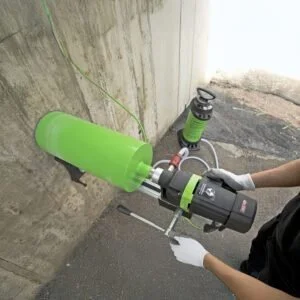

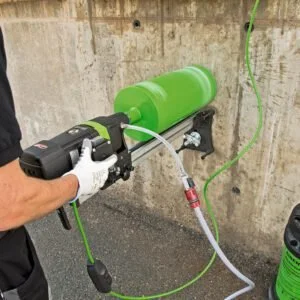

• For drilling on floors, walls, and overhead/ceilings.

• Lightweight and streamlined design makes it extremely portable and easy to maneuver for any concrete drilling application.

• Drills accurate holes for service entrances, conduit banks, cable trays, and utility penetrations.

• Suitable for extracting large concrete core samples for engineering analysis, quality control, and structural assessment.

• Supports coring for bridges, tunnels, foundations, utility vaults, and infrastructure projects.

Technical Specifications

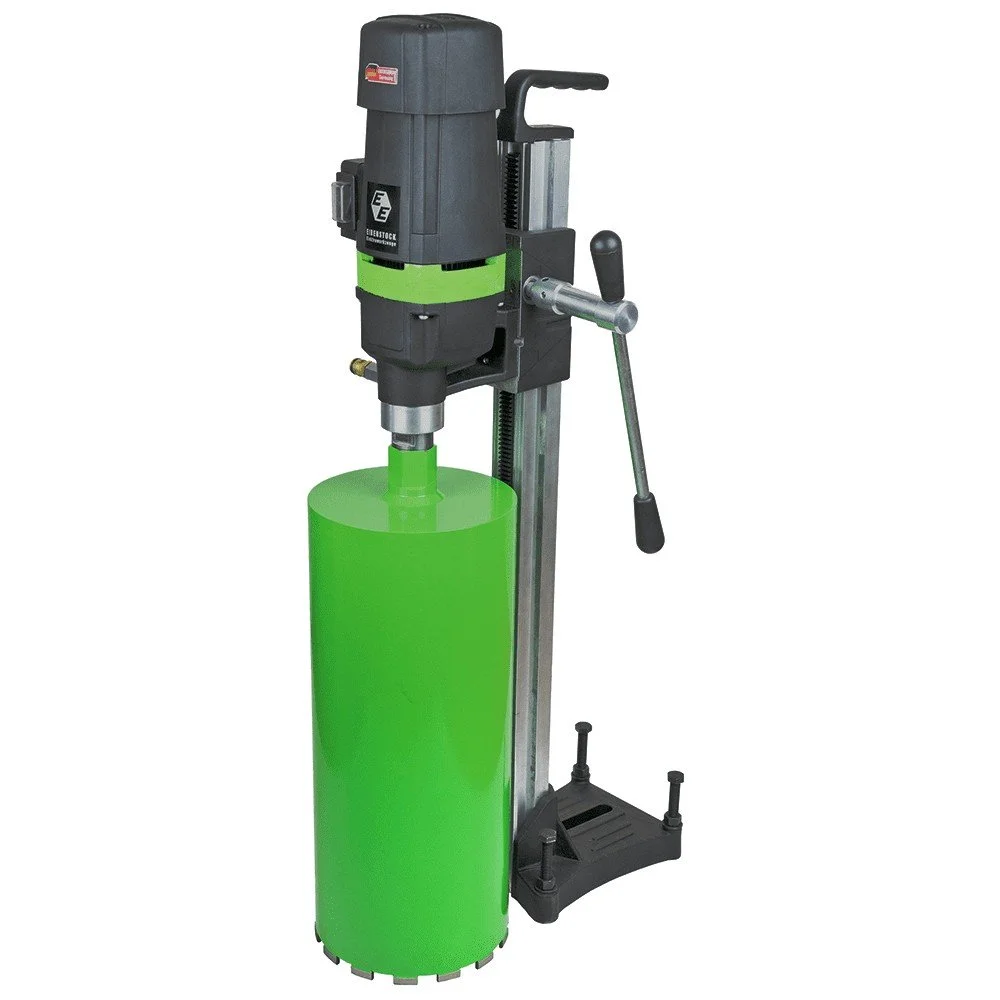

• Item ID: DBE 201

• Power input: 18 Amp

• Rated Voltage: 110 V

• Load Speeds (RPM): 450

• No-Load Speed (RPM): 675

• Drilling Diameter: 8"

• Spindle Connection: 1-1/4"x7 UNC, 5/8"x11 UNC (optional)

• Column Length: 31"Hub21-3/4"

• Weight: 34 lbs.

• Package Contents: In a box DBE 201 motor and rig, open wrench SW 32 + 41 (diamond core drill bit not included)*

• DBE 200 has been discontinued and is replaced by DBE 201
